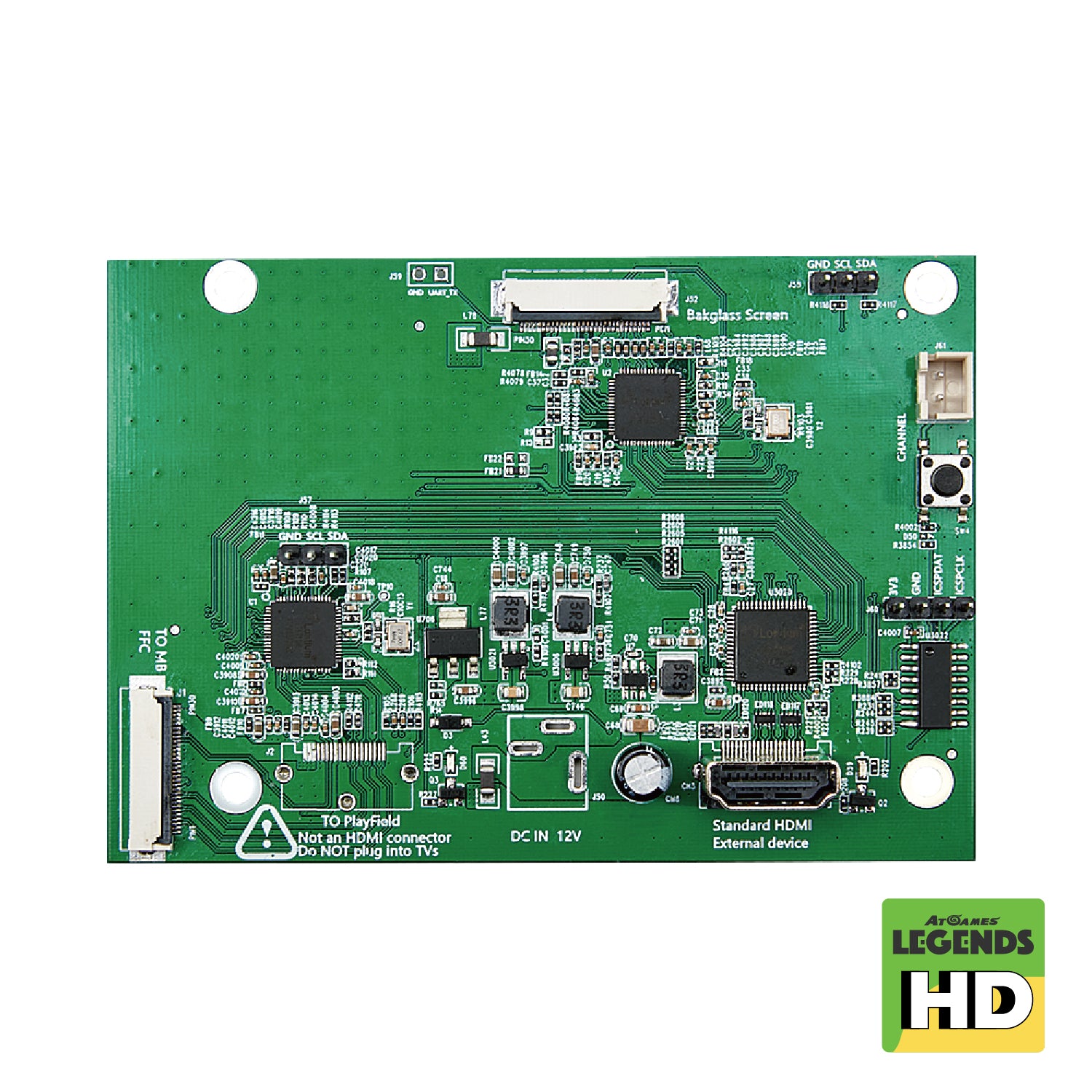

Video Input Backglass Switchboard for Legends Pinball HD

120 reviews

Price:
Sale price$49.99
Ships in 7 - 10 business days.
Shipping to continental US only. Shipping and handling $14.00.

The AtGames Video Input Backglass Switchboard for Legends Pinball is the ultimate digital pinball accessory. (Note: Not applicable to Legends 4K machines.)

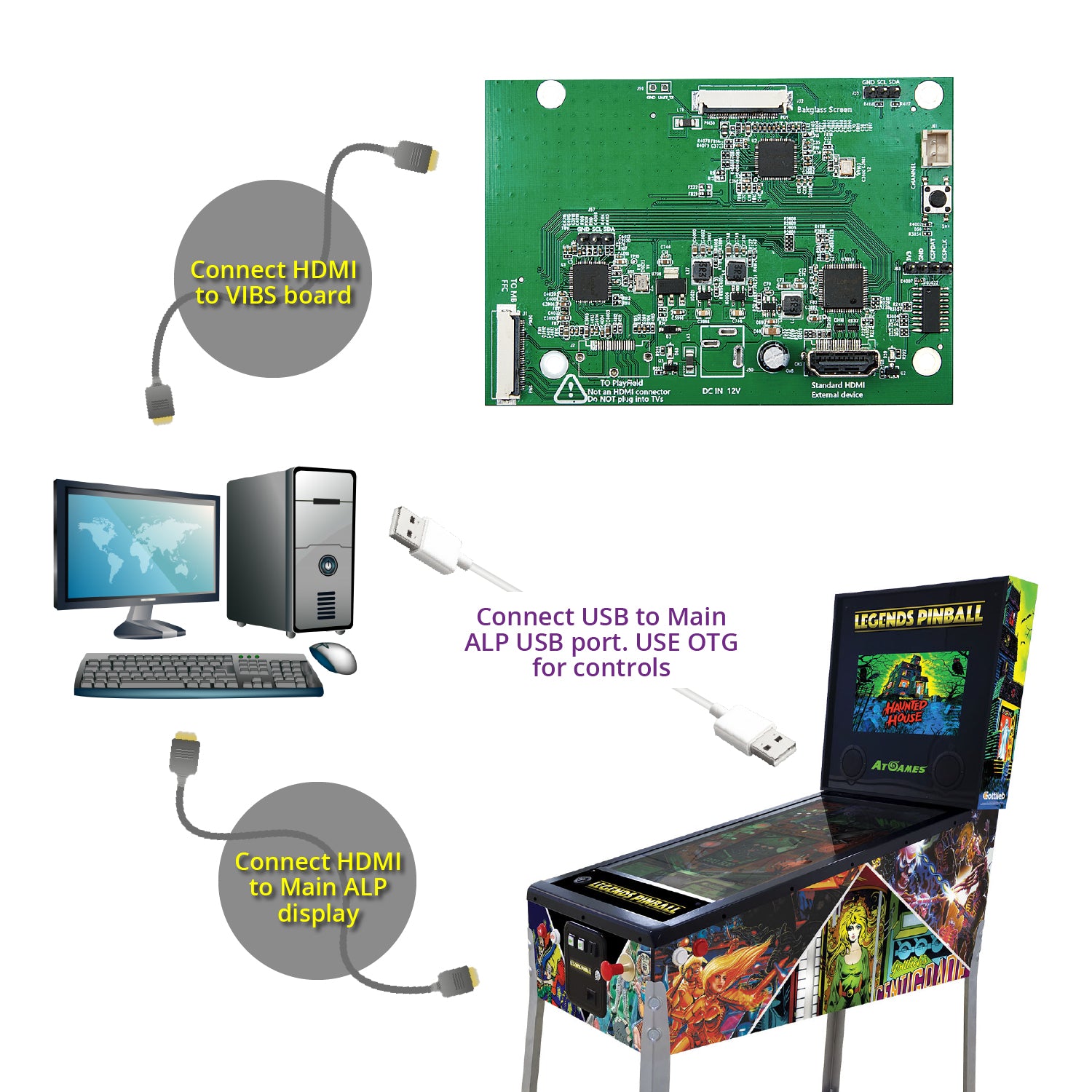

Through the AtGames Open and Connected Pinball (OCP) initiative, you can connect your pinball engine-enabled external PC to the Legends Pinball, utilizing its large, dual-screen display and arcade controls for the ultimate in pinball, arcade, and console gaming. The Video Input Backglass Switch, or VIBS, is used to connect the PC to the Legends Pinball’s backglass display.



  • Display custom backglass art and other content from your connected PC on your Legends Pinball. It's the perfect way to take your pinball, arcade, and console gaming to the next level!
  • Connects to your external PC via HDMI.
  • Connect to Legends Pinball with supplied cables.
  • Shows backglass art from your PC pinball video games, as well as other content.
  • Instruction Manual
  • Some technical knowledge advised.
  • Note: This product was not designed for the average user. Instead, it was created for a more technical DIY (Do It Yourself) user. The expectation is that the user of this product is experienced in modding and is prepared for and aware of the risks in the handling of sensitive electronic components. Additionally, some users have reported problems with using AMD Radeon graphics cards when connected to this product. Some potential workarounds have been posted on Wagner's Tech Talk at this link: http://wagnerstechtalk.com/alp/#VIBS_Troubleshooting. Finally, AtGames can only provide warranty coverage for this product (https://www.atgames.net/arcades/warranty/). For technical questions or other operational issues, please utilize The Official AtGames Pinball Fan Page on Facebook (https://www.facebook.com/groups/166745557972535).



    Model Number: HAB100
    3.9 x 2.8 x 0.8 inches; 1.12 Ounces

    Customer Reviews

    Based on 120 reviews
    74%
    (89)
    14%
    (17)
    5%
    (6)
    1%
    (1)
    6%
    (7)
    D
    Diane Harrelson
    It works

    Works as described. Woulda give 5 star, price is a bit high even when its on sale and shipping is expensive.

    R
    Ryan S
    VIBS Backglass

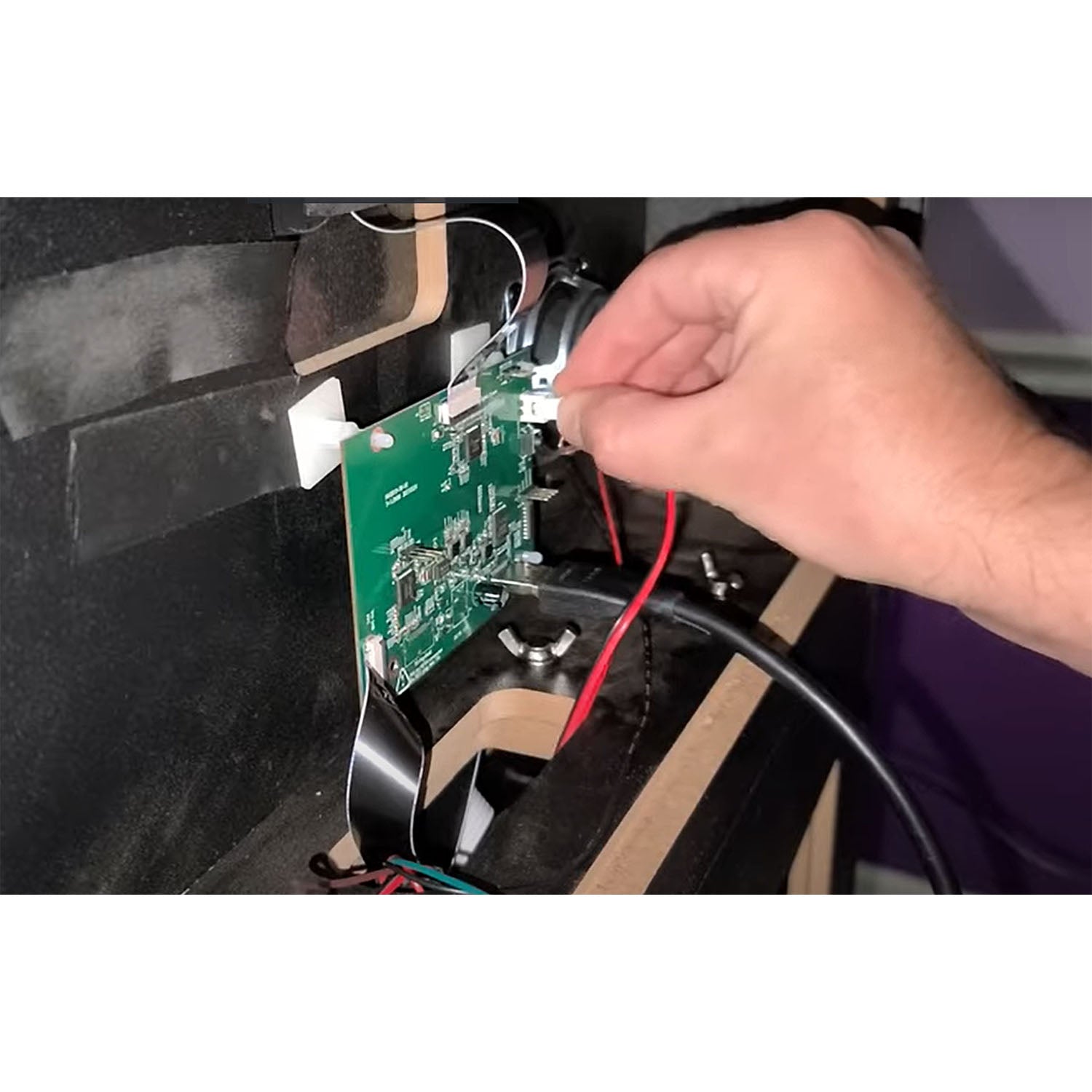

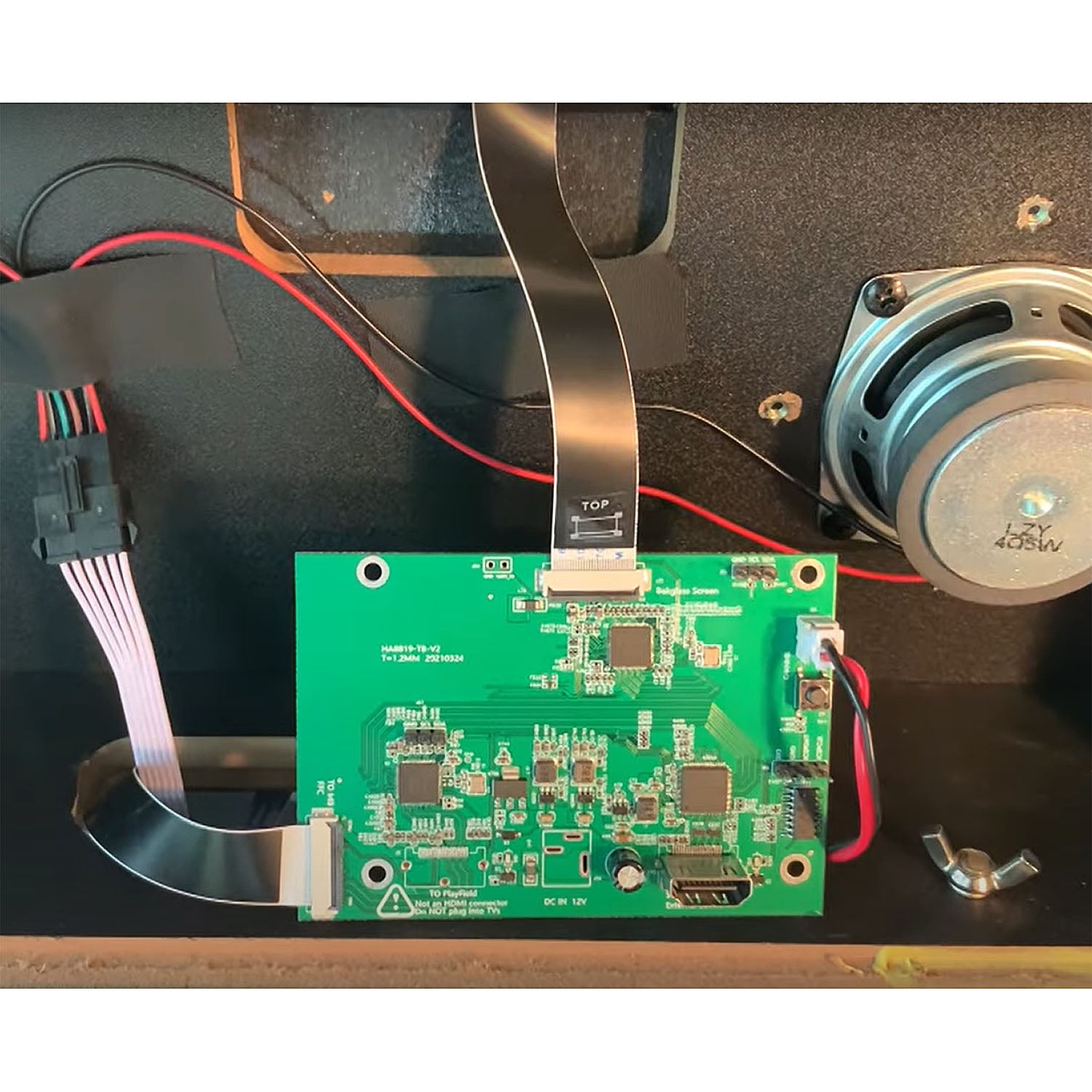

    Fairly easy install, several videos online. Works as described which is pretty awesome. My only complaint is that it doesn’t fit well with newer ALP machines. There are four posts in the way where the tiny HDMI board plugs in. It is cramped and requires leaving the back panel off unless you modify the back glass door. Due to this weird positioning, it makes keeping the ribbon cables from bending at a 90 degree angle a challenge. It is definitely an after thought in design. Despite this, I’d highly recommend it.

    C
    Corey Alexander

    Video Input Backglass Switchboard for Legends Pinball HD

    G
    Gregory Wurst
    Works great

    Worked exactly as described.

    J
    John P.M.
    Perfect for OTG usage. Must be careful installing it.

    Got my VIBS a few years ago and it has been working strong since then. I use it for OTG mode with Pinball FX and it works smooth as butter. Easy to install, easy to wire, and easy to use. I did take away one star however for two things. Firstly, you need to be VERY careful installing it. It has warnings all over that installing the ribbon cable the wrong direction can break your back glass. I've read online and a few reviews that this can happen. It is user error if you break it, but maybe a design that could prevent it from going in the wrong way would help. Second is how the design makes your cabinet look pretty ugly unless you are willing to drill holes for cable management or leave the door off your machine. Otherwise, you have wires hanging out everywhere and a button just sitting around as a switch.

    Sort of unrelated, but note to games keep in mind there is more work to configure Pinball FX to display black glass art properly than just plugging it in.
